Crabtree 18LPV1612SL Loadstar Vertical 125A TP&N Lighting & Power Board 16+12 Way Pulsed Output / Modbus

Product Description

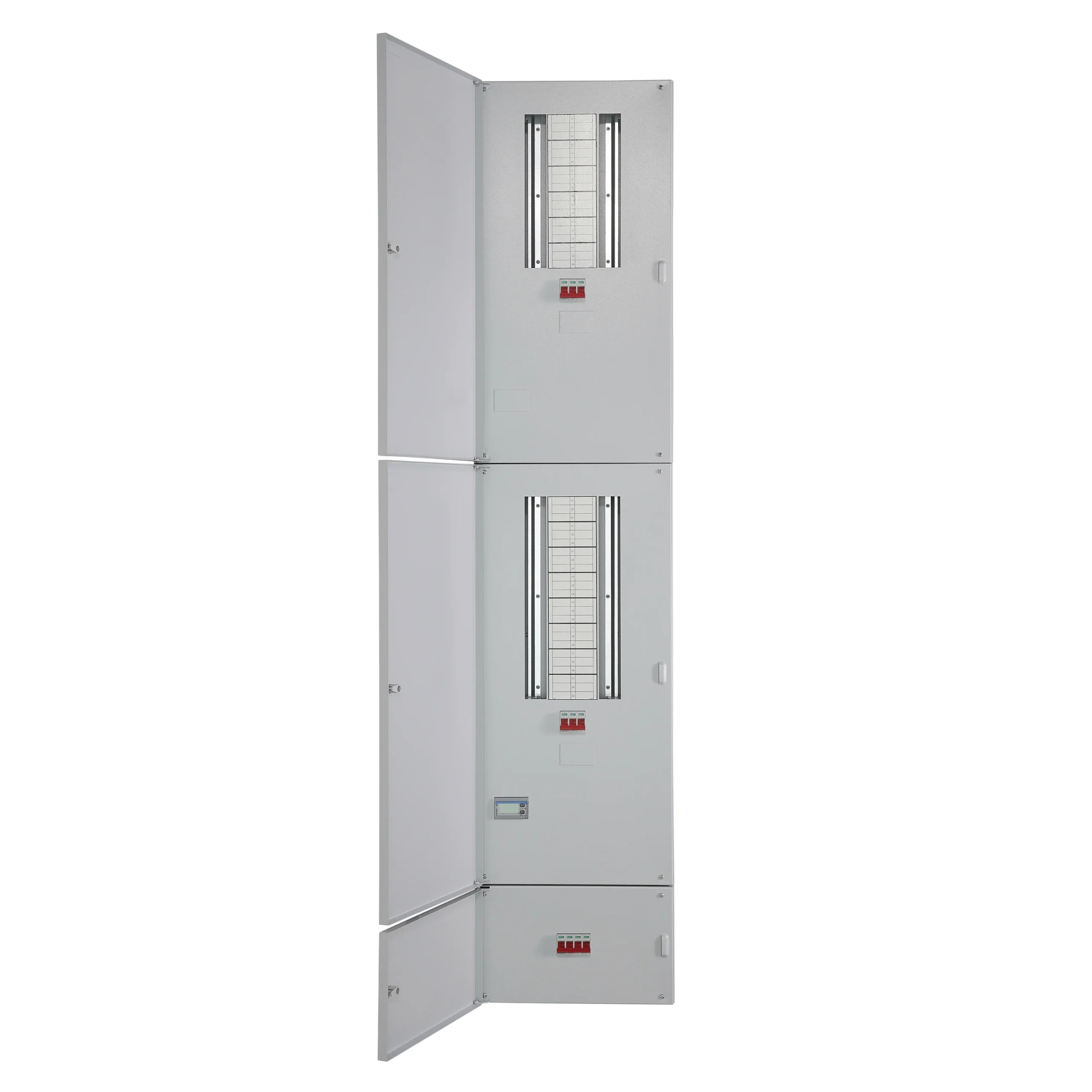

The Crabtree 18LPV1612SL Loadstar Vertical Lighting & Power Distribution Board
is a 125A TP&N commercial distribution solution designed for
installations requiring a very high number of circuits across both power and
lighting. With a 16-way power section and a
12-way lighting section, it offers maximum flexibility and circuit
capacity within the Loadstar vertical range.

Supplied complete with a switch disconnector and an integrated
two-channel pulsed output / Modbus RTU energy meter, the board
supports compliance with Building Regulations Part L2 and provides
comprehensive energy monitoring for property managers, consultants, and facilities
teams.

Key Features & Benefits

• 125A TP&N vertical lighting and power distribution board
• 16-way power and 12-way lighting configuration
• Designed for commercial applications supporting Part L2 compliance
• Supplied with switch disconnector for safe isolation
• Integrated two-channel pulsed output and Modbus RTU energy meter
• Accepts Crabtree Loadstar 10kA final circuit protection devices
• Compatible with single pole and triple pole Type B, C and D MCBs (6A–63A)
• Compatible with single pole Type B and C RCBOs (6A–50A)
• Individual isolation for top and bottom sections, each fully rated at 125A
• Durable RAL 7035 grey powder-coated finish
• Designed and manufactured in the UK to BS EN 61439-3

Applications

Ideal for large commercial buildings, multi-occupancy developments, and managed
properties where a high number of lighting and power circuits is required, combined
with integrated energy monitoring and compliance with current building regulations.

Technical Documentation

Data Sheet:

Click here to download the data sheet
